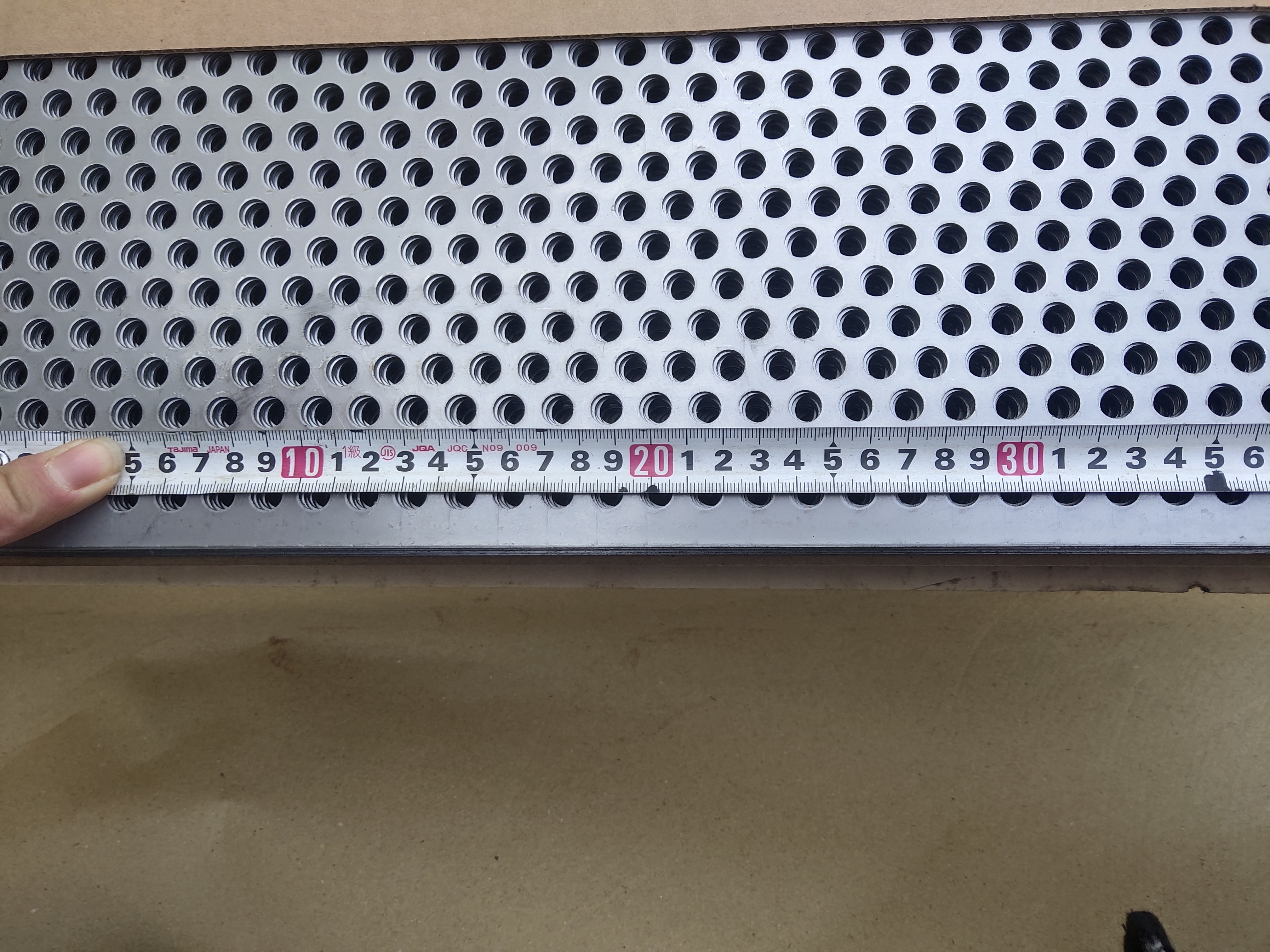

Perforated Sheet


Description:

Alloy: 304/304L, 316/316L, 430
(DIN 1.4301, 1.4307, 1.4401, 1.4404, 1.4016)

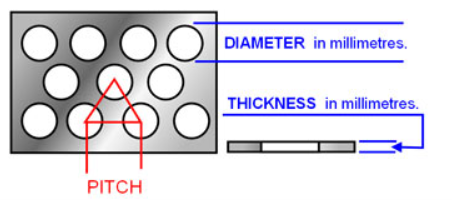

Inquiry requires: thickness of the sheet, diameter of the hole, pitch


Specification :

Application: Architecture usage, such as cladding, building facades, grilles, anti-skid floor, or filtration performance, such as grain dryers, wine presses, fish farming, bee hives, hammer mill screen, and window machine screens

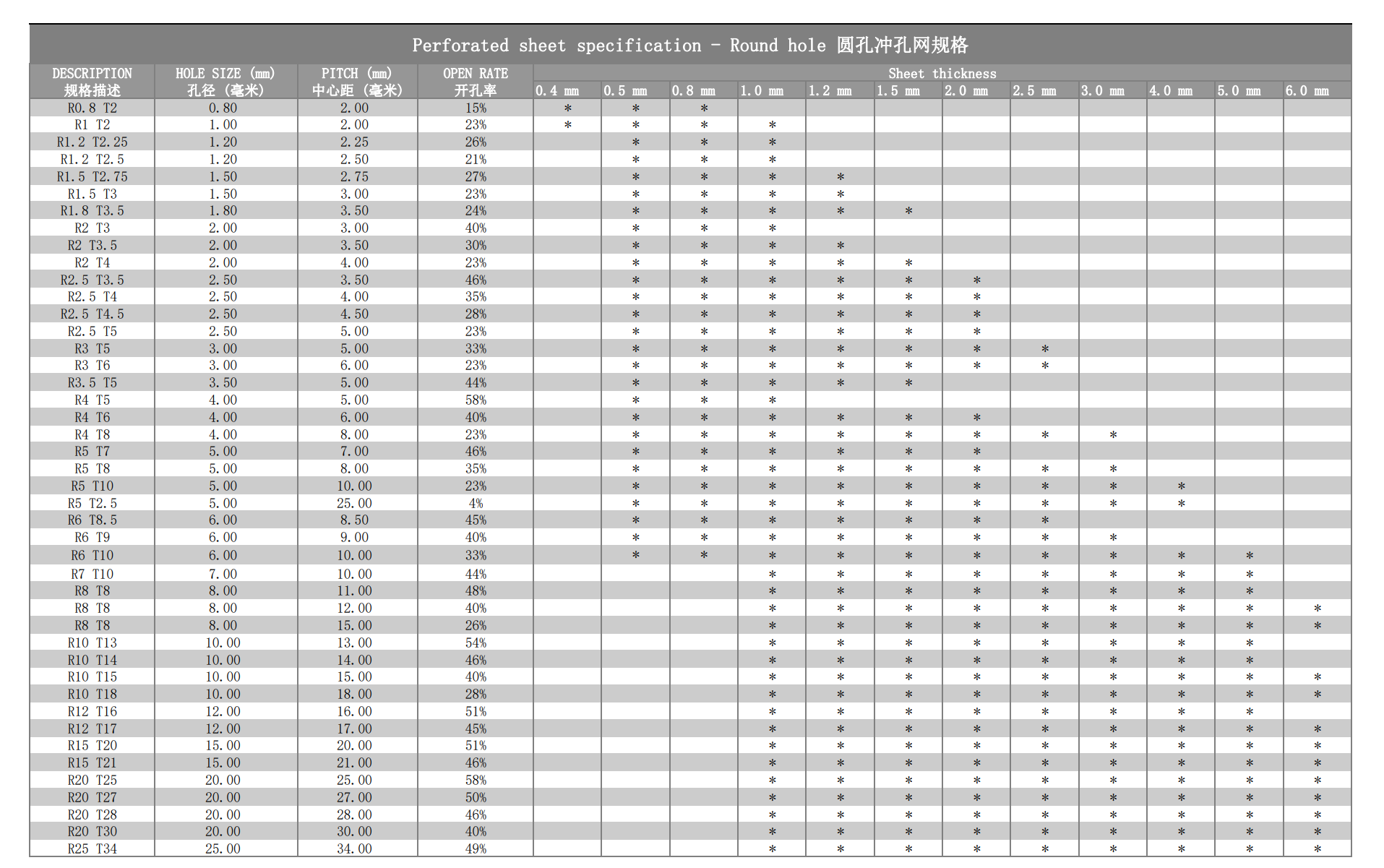

Standard size for perforates sheets is as indicated in below chart. If other sizes are required, please check with us.
